Product Description

Max Output : 2600w

Rated Output: 2300w

Rated Voltage: 110V

Rated frequency: 50Hz

Fuel Tank Capacity: 5 litres

Running time: Approx 3 hrs

Dimensions: L = 565 x W = 320 x H = 465 mm

Key Features

1 year full parts and labour warranty on domestic use.

2600w maximum output for larger appliances like microwaves and hairdryers.

Super quiet at only 65dBa at 7 metres

Lightweight at only 29.5 kg.

12V 8A dc output for charging batteries

Inverter technology for clean, stable power and improved efficiency.

4 stroke OHV Engine.

What will it run?

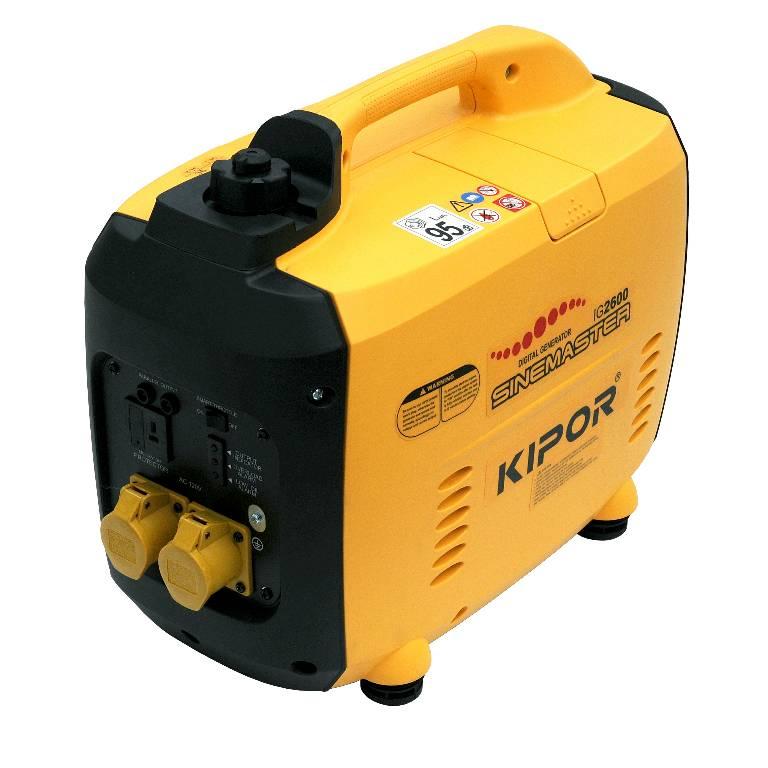

With its 2600 watt maximum output the IG2600P is ideal for construction sites and also portable for trademen to carry around easily.

With its 2300 watt rated output power the IG2600P can be a source of power for use in the garden or allotment, there are also many workshop applications where the IG2600P can be of great use.

Always check the power requirements of the items you wish to run and never try to use more power than the unit is rated for.

Ready to use right out of the box.

All you have to do is fill it with fuel and oil and it is ready to go.

Lightweight & Compact

Ergonomically designed and lightweight to make it easy and comfortable to carry. Extra wide filler cap for spill free refuelling.

Pure Power

Inverter Technology to provide stable, pure Sine Wave 240V output, safe for all of today’s electronic devices including sensitive equipment.

Efficiency

Smart throttle technology ensures that the engine will run to the lowest engine speed required for the power that you are using.

This adds to the fuel economy and reduces the noise during use.

Simplicity

Quick and simple starting and running. A low oil sensor will stop the generator running and prevent damage if the oil level falls too low.

Rubber feet provide a sturdy platform and minimise vibration.

Parallel Operation

Kipor suitcase generators come with a parallel connection as standard.

This allows you to join miss-matched sizes of generators together and allows you to run at 80% of the combined output of the two machines.

Model	IG2600
Rated frequency (Hz)	50 60
Rated voltage(V)	110
Rated current(A)	10 19.2/9.6
Rated speed (r/min)	3600
Rated output (kVA)	2.3
Max. output (kVA)	2.6
DC output	12V-5.0A
Phase number	Single
Current breaker	N/A
Structure type	Portable, silent
Fuel capacity(L)	5
Set fuel consumption(g/kW.h)	500
Continous running time(hr)(rated output)	3.0
Noise level(zero load-full load)dB(A)/7m	58-65
Overall dimension（L×W×H）mm	565X320X465
Net weight(kg)	29.5
Starting system	Recoil starter
Fuel type	Automotive unleaded gasoline
Lube oil brand	CD grade or SAE10W-30，15W-40
Engine Model	KG166
Engine Type	Single cylinder, four-stroke, OHC,vertical
Bore×stroke (mm)	66×50
Displacement (ml)	171
Compression ratio	8.5:1
Rated power[Kw(r/min)]	3.3/3600
Ignition system	T.C.I
Spark plug	WR7DC
Lowest fuel consumption(g/kW.h)	395
